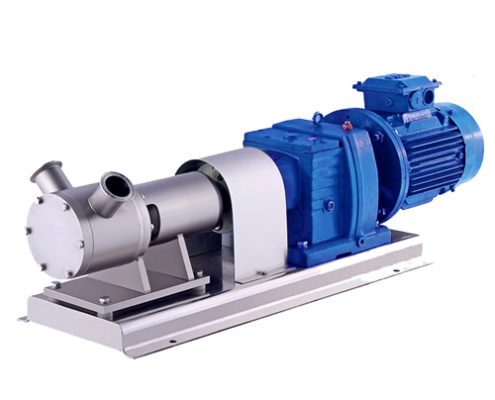

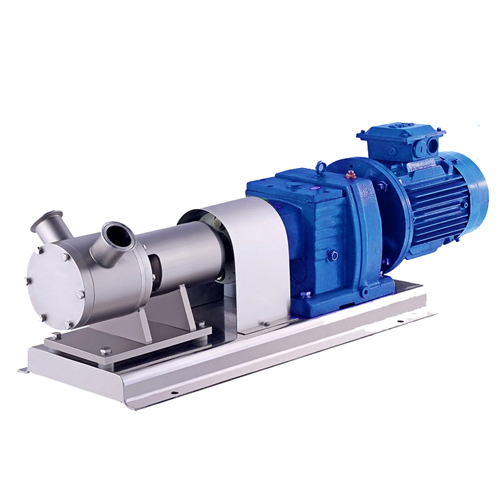

Sanitary Sine Pump
APPLICATION
ZSP Sanitary Sine pump is a Unique innovation of positive displacement pump,the special “ sine-shaped” rotors design makes it become a excellent pump for transfer liquid with big particles or high viscosity liquid.
Such as beverage with big pulp ,ready meals, soups, sauces, seasoning,frozen foods,mayonnaise, cheese curd, deli salads and sausage fillings.

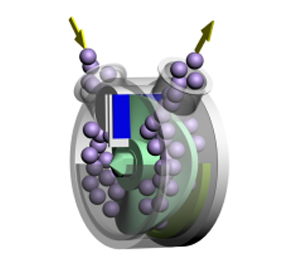

Due to its special design ,ZSP sine pump can be used for big particles ( up to 50 mm) with gentle transfer without any pulsation.
PARAMETER
- Viscosity: 1,000 – 800,000 cps
- Particle size:1-50 mm
- Capacity: 1- 80 t/h
- Pressure : 2-15 bar
- Power: 0.37 kw- 55 kw
- Speed:50-960 rpm
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE

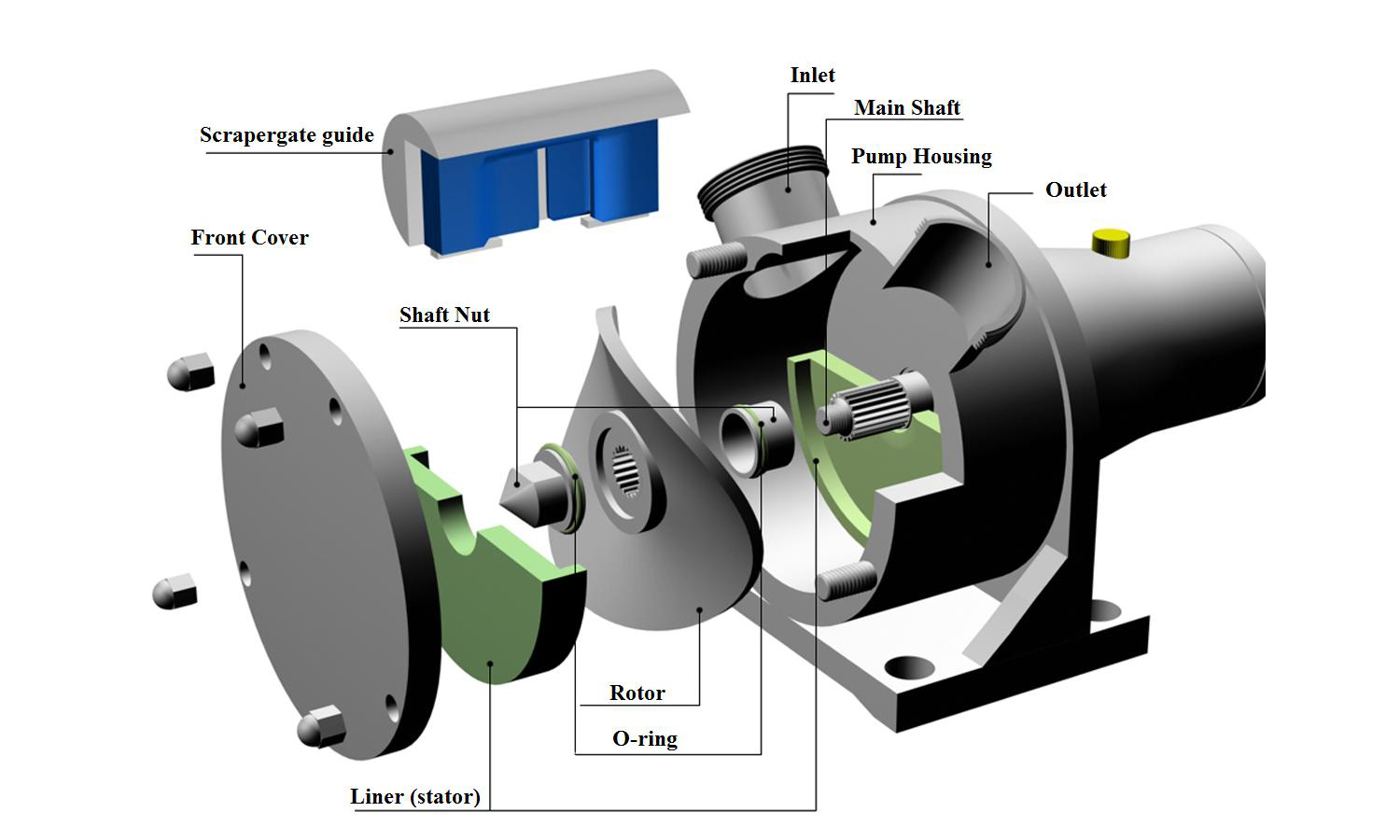

Rotor: Sine Shaped
- Gentle product handling
- High Suction
- Low-pulsation product flow
- No aeration or creation of foam
- Quick and easy Maintenance
- High viscosity (1000-800,000cps)
Pump certified according to 3A sanitary standards.
Very robust stainless steel cast lantern.
Pump support from AISI 304.
MATERIAL
- Parts in contact with pumped media AISI 316L or 304/PEEK
- Other parts in stainless steel AISI 304
- Gaskets (standard) EPDM (FDA)
- Mechanical seal (standard) Graphite/Sic/EPDM
- Inside surface finishing Ra < 0.4 µm.
- Outside surface finishing Mirror polished
Options
OTHER
- Mechanical seals: SiC/SiC or TuC/SiC.
- Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
- Gaskets in EPDM or PTFE.
- Heating chamber.
- Isolation can.
- Vertical support.
- Rectangular nozzle.
- Various kinds of drives and protections (gearbox drive with optional frequency converter,
pulley/mechanical drive speed selector). - Trolley and/or control panel.
- Connections: clamp, SMS, RJT, etc.
