Self-priming Pump

APPLICATION

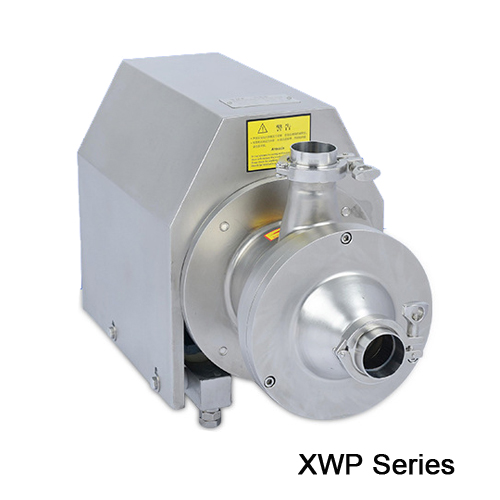

XWP Self-priming pump is s particularly suitable for pumping liquids containing air or gas without losing its pumping capacity.

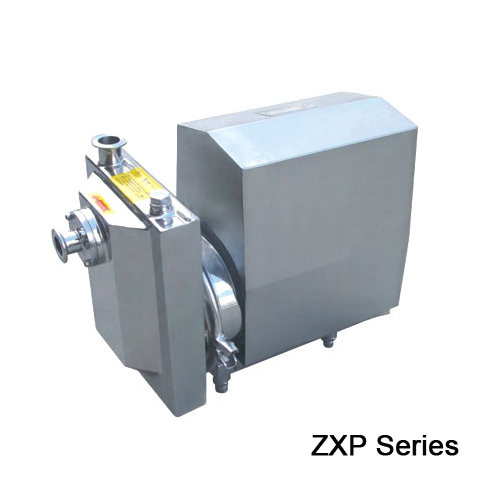

ZXP Self-priming pump is mainly applicated for sucking the liquid from the low position or from a barrel to a high position tank.

It’s hygienic design makes it meet the highest sanitary requirements for the application such as the food-processing ,pharmaceutical,dairy,milk,bear industries.  Also the self-priming pump has been widely used for CIP system working.

PARAMETER
  • Capacity:  1- 50 t/h
  • Sucking Height :1-10 meters
  • Head :  1- 60 Meters
  • Power: 0.37 kw- 37 kw
  • Motor: 220V/230V/380V/440V,  50/60Hz
FEATURE
  • Different connections standard:DIN,SMS,JIS, ISO
  • Open impeller manufactured with stainless steel investment casting technology.
  • Sanitary mechanical seal.
  • Pump certified according to 3A sanitary standards.
  • Very robust stainless steel cast lantern.
  • Pump support from AISI 304.
MATERIAL
  • Parts in contact with pumped media  AISI 316L or 304
  • Other parts in stainless steel         AISI 304
  • Gaskets (standard)                           EPDM (FDA)
  • Mechanical seal (standard)                 Graphite/Sic/EPDM
  • Inside surface finishing                          Ra < 0.4 µm.
  • Outside surface finishing                     Mirror polished

Options

OTHER
  • Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
  • Cooled or double mechanical seal.
  • Gaskets in FPM (Viton®) and PTFE.
  • Connections: Clamp, SMS, RJT, etc.
  • Motors with additional protection.(movable, Explosion proof)
  • Trolley and/or Switchboard.
