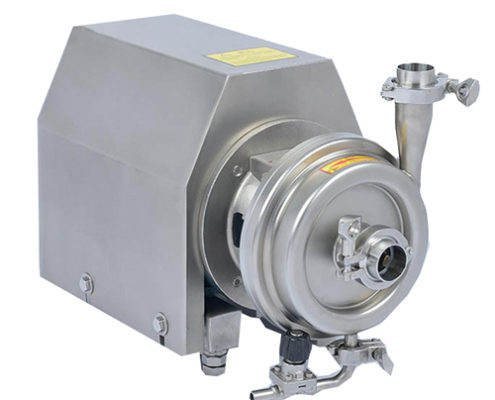

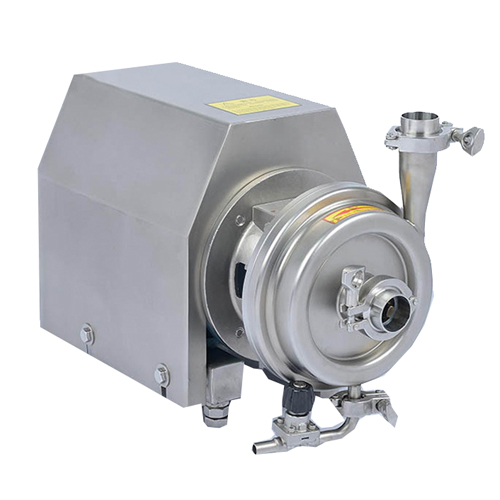

Sanitary Magnetic Pump

APPLICATION

ZMP Sanitary magnetic pump is designed without any mechnical seal ,which thoroughly solve the problems of running, dripping, and leaking

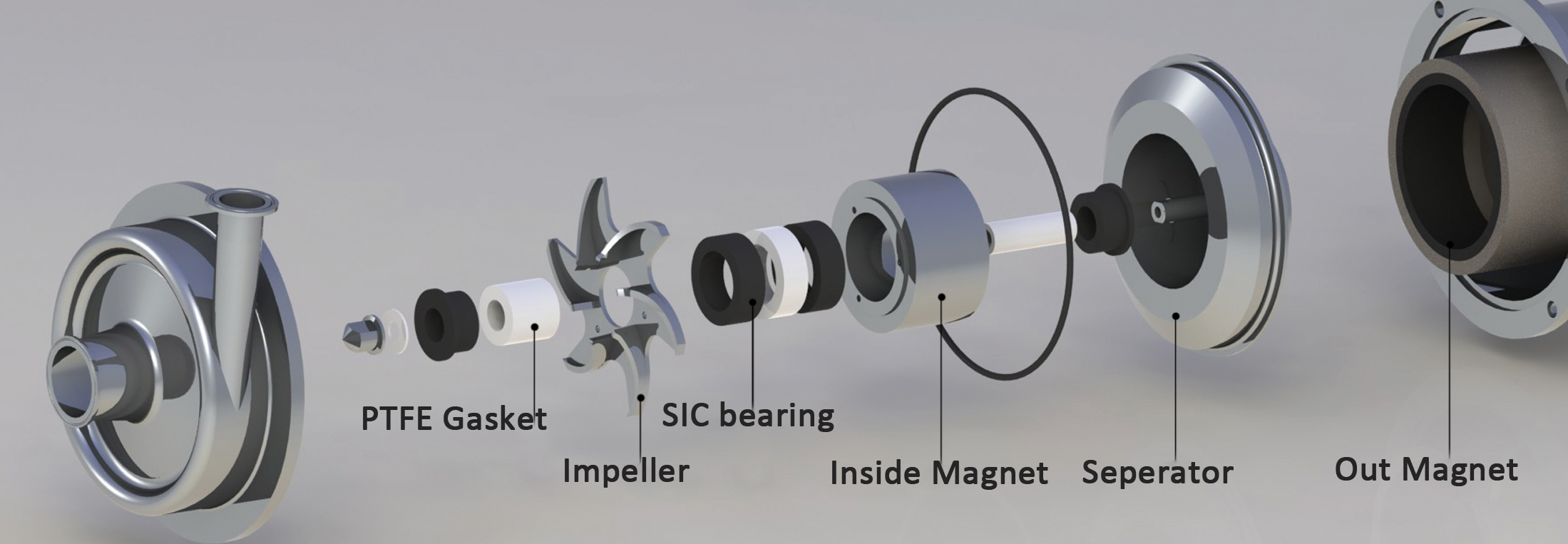

magnetic pump structure
The sanitary magnetic drivepump is used for liquid without solid ,such as liquid, soup, alcohol, white wine ,beer, injectable Solutions ,etc .Welded used in the fields as medicines ,cosmetic, chemicals and beverages.

PARAMETER
  • Capacity:  1- 50 t/h
  • Head :  1- 60 Meters
  • Power: 0.37 kw- 22 kw
  • Motor: 220V/230V/380V/440V,  50/60Hz
FEATURE
  • Magnetic Drive
  • The welded isolation shell static seal replaces the dynamic mechanical seal
  • Simple structure,easy to disassemble ,easy to clean ,no dead spots.
  • Different connections standard:DIN,SMS,JIS, ISO
  • Sanitary mechanical seal.
  • Pump certified according to 3A sanitary standards.
  • Very robust stainless steel cast lantern.
MATERIAL
  • Parts in contact with pumped media  AISI 316L
  • Other parts in stainless steel         AISI 304
  • Gaskets (standard)                          PTFE (FDA)
  • Live Bearing :                                         SIC
  • Inside surface finishing                          Ra < 0.4 µm.
  • Outside surface finishing                     Mirror polished

Options

OTHER
  • Gaskets in FPM (Viton®) and PTFE.
  • Connections: Clamp, SMS, RJT, etc.
  • Motors with additional protection.(movable, Explosion proof)
  • Trolley and/or Switchboard.
