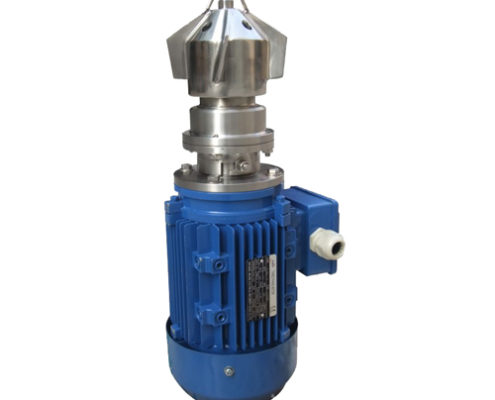

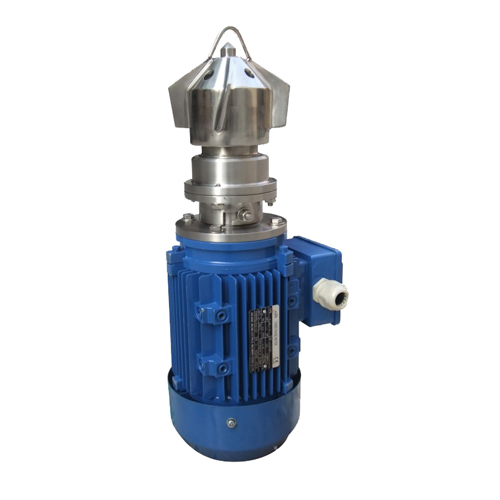

Bottom Entry Magnetic Mixer
ZJ Series Bottom entry magnetic mixer ,which is also call magnetic agitator. It is installed at the bottom of the tank.
Magnetic mixer is a highly hygienic solution for the applications of dispersion, dissolution, homogenization and mixing of a wide range of media in the pharmaceutical industry.
The magnetic agitators are especially useful in sterile processes; absence of mechanical seals prevents any contact with the exterior environment.
The most common applications of the Bottom entry magnetic mixer are dissolution of glucose in dematerialized water, Injection solutions,maintenance of vaccine suspensions homogeneity and mixing of blood fractions.

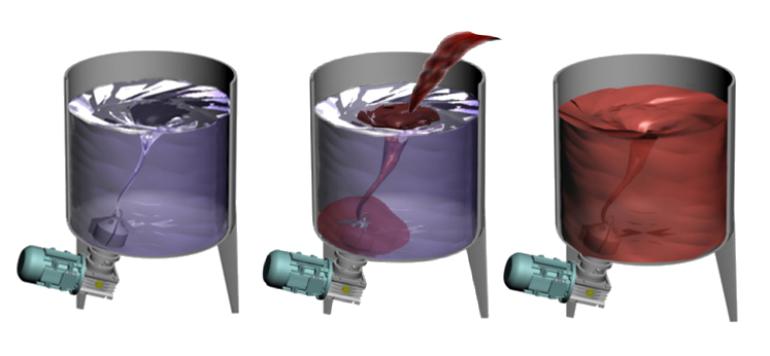

When solids or liquids are added into the vortex created by the magnetic mixer, they are transferred straight to the magnetic rotor.The rotor transforms the axial movement of the medium into a radial acceleration from the center of the rotor towards the wall of the vessel. The added medium is well distributed ensuring a homogeneous mixing of all the volume.
It is strongly advised to assemble the magnetic mixer in eccentric position in order to minimize the risk of vortex and to avoid the installation of deflectors.
PARAMETER
Viscosity: 1,- 5,000 cps
Tank capacity: 1- 50 t/h
Power: 0.37 kw- 55 kw
Speed:50-960 rpm
Motor: 220V/230V/380V/440V, 50/60Hz
- High blending capacity with low shear.
- Magnetic coupling. No risk of leakage.
- CIP/SIP design.
- Bayonet coupling for easy assembly/disassembly of the drive unit.
- Low power consumption.
- Effective blending even of small volumes.
- Very low particle generation.
- Bottom mounted. Excellent for suspensions.
- Practical when there is no much space at the top of the tank.
- Frequency converter recommended.
- Rotor AISI 316L
- Welding plate AISI 316L
- Bearing SIC
- Surface finish Ra< 0.4 um
Options

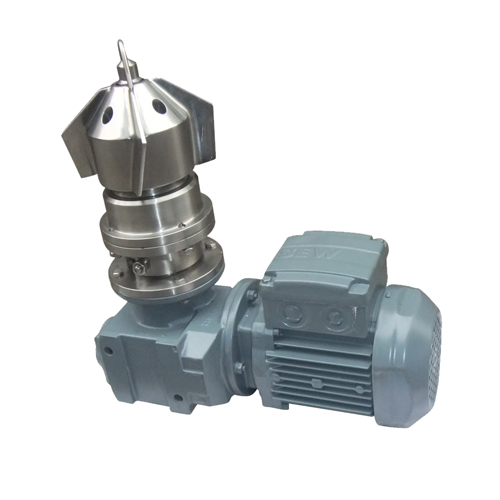

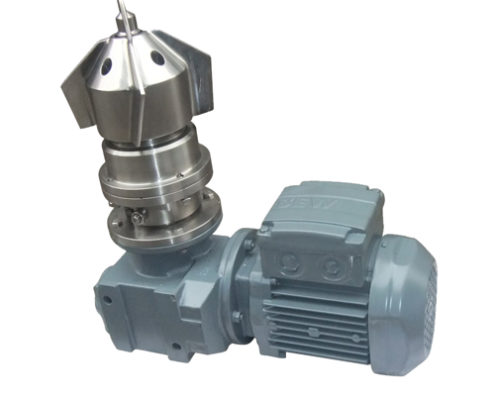

- Various kinds of drives and protections (gearbox drive with optional frequency converter,
pulley/mechanical drive speed selector). - Trolley and/or control panel.
