Powder Liquid Mixer
mixing powder with water or other liquid inline ,homogenizer mixer ,tri-blender
APPLICATION
GY Series Powder Liquid mixer (high shear tri-blender) is used to blend and dissolve the powder or solid into the liquid in line. In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.
They can also be a solution to preparing solid-liquid mixtures in the pharmaceutical, cosmetics and chemical industries.

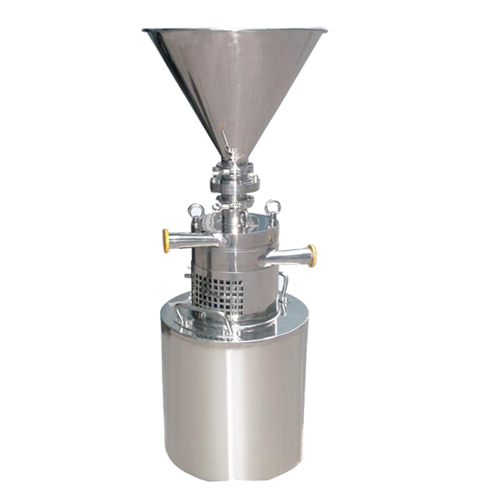

- GY-L Vertical power Blender is the vertical type with a Hopper at the top.

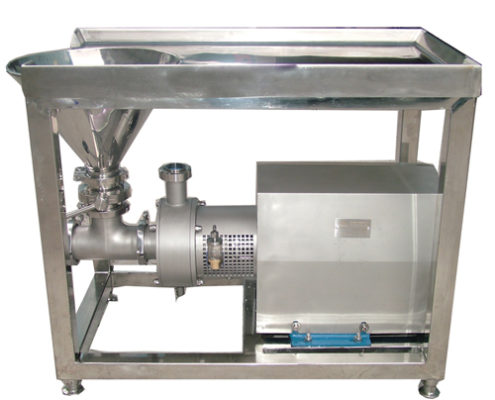

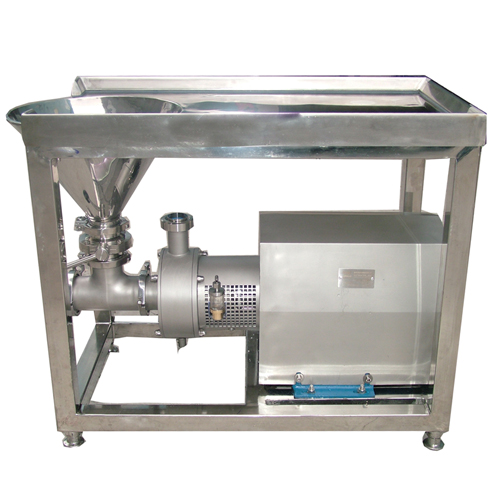

- GY-W Horizontal tri-blender is the horizontal type with a table,which are very useful when solids are added from heavy sacks. The table is used to support the sacks while they are opened and can be emptied inside the hopper with minimum effort.

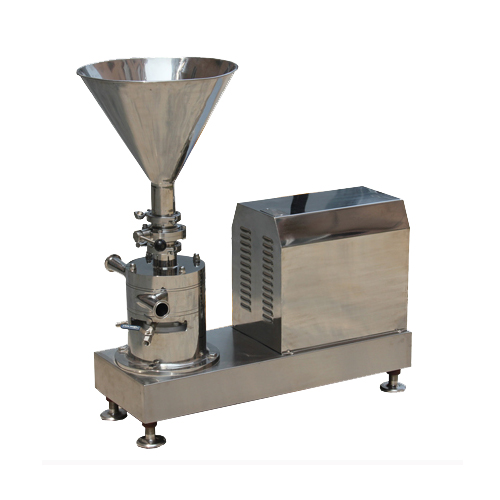

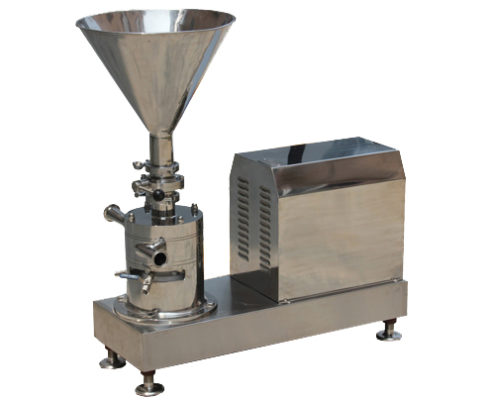

- GY-F Split-Blender has a special design ,the motor the pump head is separated, avoid and liquid leaked and corrode the motor part.

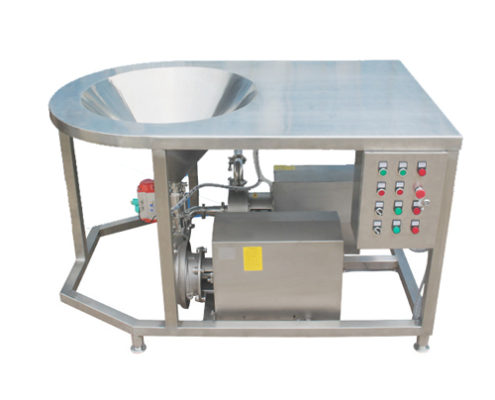

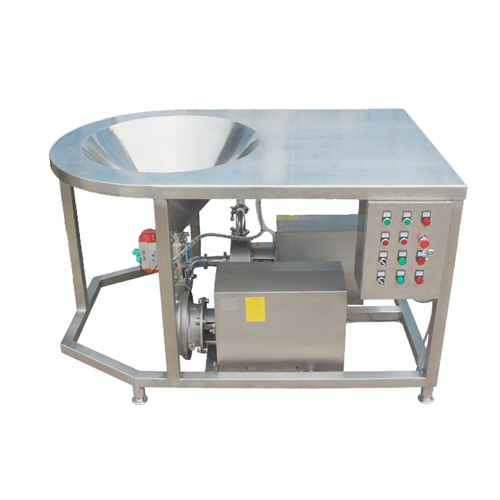

- GS Tri-blender is called as table blender, used to dissolve solid/powder products in recirculated liquids. It has a wide range of applications, for example, preparation of pharmaceutical syrops or dissolution of pectin in glucose for marmalade production.h1 style=”font-size: 14px;”>tri-blender
PARAMETER
- Shearing size: 100 microns minimum
- Capacity: 1-18 t/h
- Power: 4/7.5 kw
- Speed:2900/3300 rpm
- Motor: 220V/230V/380V/440V, 50/60Hz
FEATURE
- Simple assembly for quick and homogeneous mixing of a great variety of solids without contact with the air.
- Complete mixing with recirculation of the material.
- In some applications, it can be used in line, without recirculation.
- Sanitary design.
- Easy assembly and disassembly by Clamp connections.
- CIP and SIP is available.
MATERIAL
- Parts in contact with pumped media AISI 316L or 304
- Other parts in stainless steel AISI 304
- Gaskets (standard) EPDM (FDA)
- Mechanical seal (standard) Graphite/Sic/EPDM
- Inside surface finishing Ra < 0.4 µm.
- Outside surface finishing Mirror polished
Options
OTHER
- Mechanical seals: SiC/SiC or TuC/SiC.
- Cooled mechanical seal, pressurised double mechanical seal, lip seal or O-ring seal.
- Gaskets in EPDM or PTFE.
- Heating chamber.
- Motors with additional protection.(movable, Explosion proof)
- Trolley and/or control panel.
- Connections: clamp, SMS, RJT, etc.
we get full catalogue for you ,you can free download now
WORK FOR
Food-processing, Dairy and milk industry,Pharmaceutical, Wine, Cosmetic, Beverage industries, Wine and other special industries, Engineering and turnkey projects.
